ALUMINUM CYLINDERS

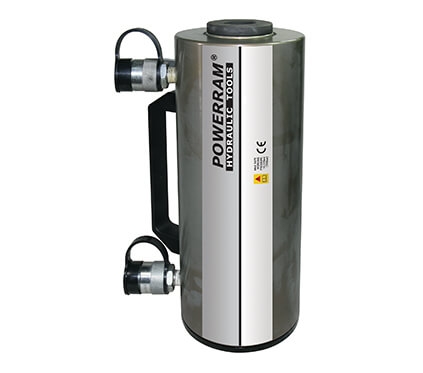

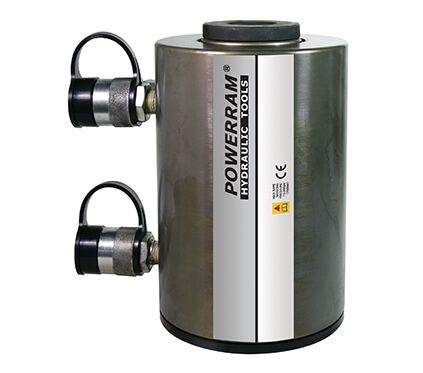

Product Name : Double Acting / Hollow Type
Product No : ADHC
Model: ADHC Series
Capacity: 30 & 60 Tons
Stroke: 50 - 250 mm
Hollow, Double Acting
Max. Working Pressure: 700 bar / 10,000 psi
  • Half weight of steel cylinders
  • Heavy duty spring for easy and full retraction.
  • Carry handles are standard for all models.
  • Hard-Anodized housing and piston reduce wear and corosion.
  • Rod wiper protects inner rod from dirt.
  • Stop ring provides blow-out protection for piston.
Model NumberCapacity (tons)Stroke (mm)Maximum Cylinder Capacity (tons)Cylinder Effective Area (cm2)Oil Capacity (cm3)Collapsed Height A (mm)Extended Height B (mm)Center Hole Diameter Y (mm)Weight (kg)
Push Pull Push Pull Push Pull
ADHC302 30 50 38.5 22.7 55 32.4 275 162 202 252 34 9.6
ADHC306 150 825 486 327 477 34 14.8
ADHC3010 250 1374 810 430 680 34 16.0
ADHC602 60 50 62.6 31 89.5 44.2 448 221 250 300 54 15.5
ADHC606 150 1342 662 350 500 54 23.0
ADHC6010 250 2237 1104 433 683 54 30.5
