Electric Pumps - 100 Ltr
Electric Pumps - 100 Ltr
Product Introduction

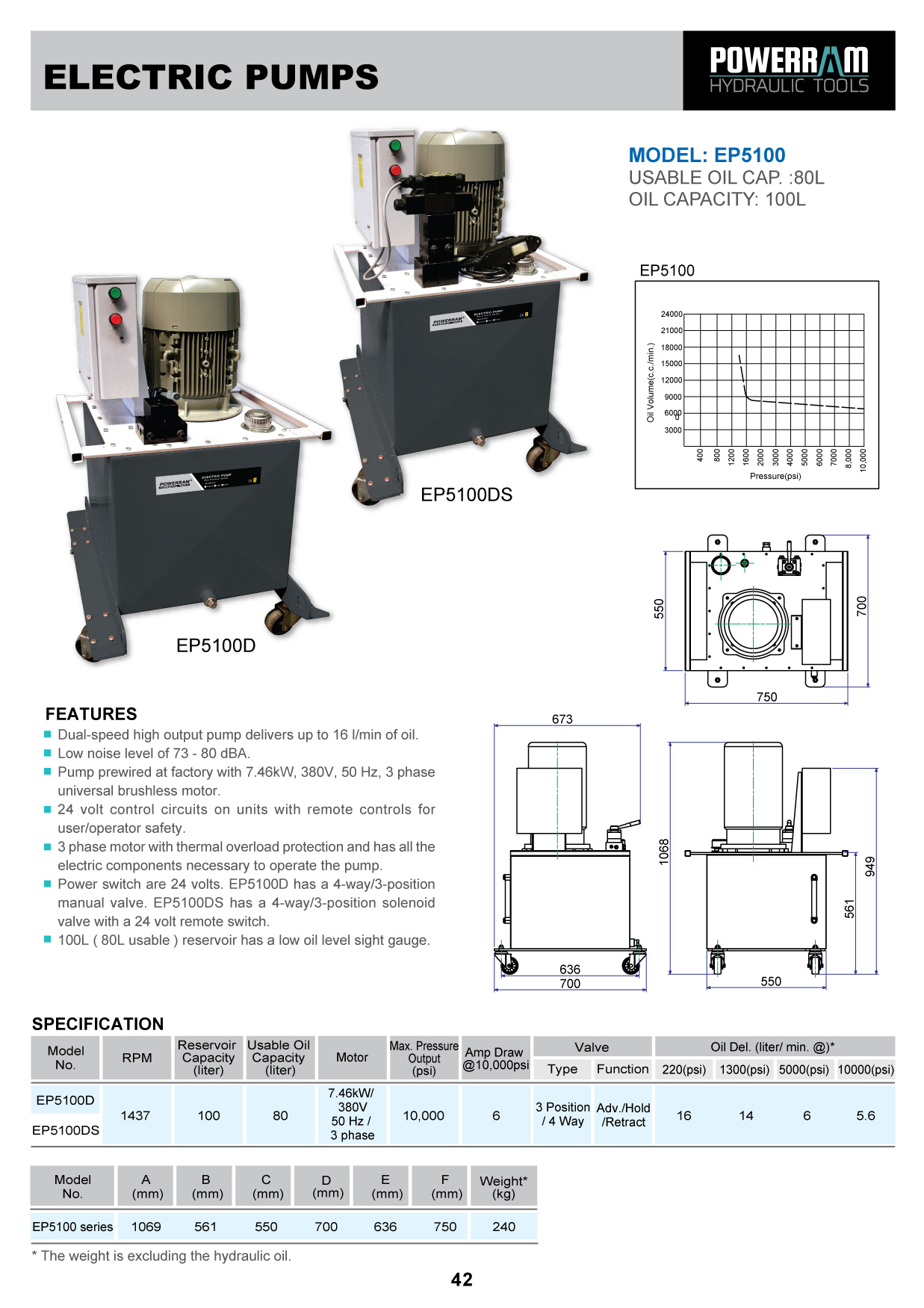

ELECTRIC PUMPS
Product Name : Electric Pumps - 100 Ltr
Product No : EP5100
MODEL: EP5100 SERIES
Electric Pumps: 100 Liter
Max. Working Pressure: 700 Bar / 10,000 psi
  • Dual-speed high output pump delivers up to 16 l/min of oil.
  • Low noise level of 73 - 80 dBA
  • Pump prewired at factory with 7.46kW, 380V, 50Hz, 3 phase universal brushless motor.
  • 24 Volt control circuits on units with remote controls for user/operator safety.
  • 3 phase motor with thermal overload protection and has all the electric components necessary to operate the pump.
  • Power switch are 24 volt. EP5100DS has a 4-way/3-position solenoid valve with a 24 volt remote switch.
  • 100L (80 usable) reservoir has a low oil level sight gauge.
Model No.RPMReservoir
Capacity
(liter)
MotorOil Del. (liter/ min. @)Weight
(kg)
220(psi) 1,300(psi) 5,000(psi) 10,000 (psi)

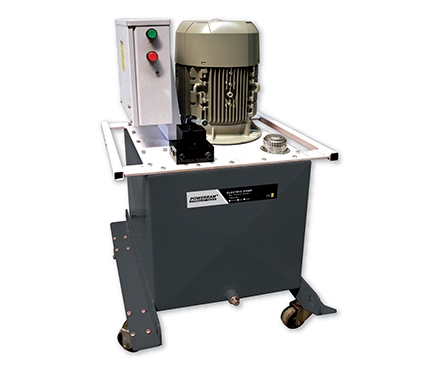

EP5100D 1,437 100 7.46 KW 380V
50 Hz
3 phase
16 14 6 5.6 232

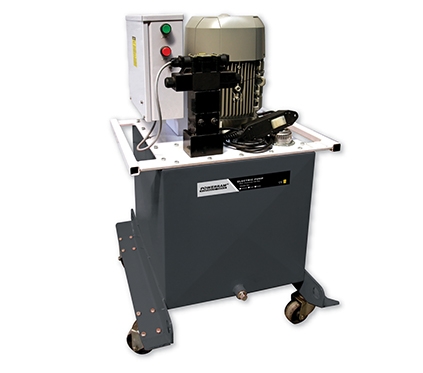

EP5100DS 241
