Product Introduction
STEEL HAND PUMPS
Product Name : Steel Hand Pumps
Product No : HA-HF

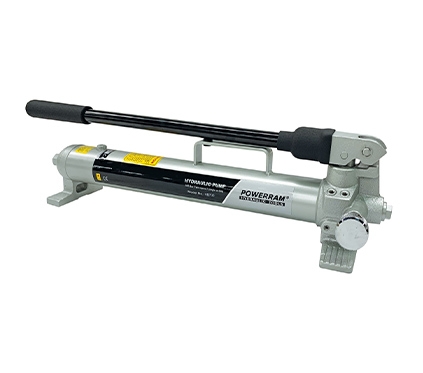

MODEL: HA-HF SERIES
Single & Dual-speed models
Large 3/8" NPT pressure port for maximum flow.
Max. working pressure: 700 bar
  • Rugged construction and light handle efforts.
  • Handy release knob with anti-leaking mechanism are truly suitable to industrial requirements and your daily works.
  • Both single and Dual-speed models are available.
  • Internal overload relief valve prevents pump from being used beyond tis rated capacity.
  • External adjustable relief valve with anti-losing mechanism design.
  • Carrying handle for easy portability.
  • HE2421 equipped with Control valve for apply with double action cylinders.
Model No.Pressure Rating (bar)Usable Oil Capacity (c.c.)Oil Volume per Stroke (cm2)Weight (kgs)
1st Stage 2nd stage 1st Stage 2nd stage
HB350 20 200 250 13.0 2.8 5.9
HB600 20 700 550 13.0 2.8 7.6
HB700 20 700 640 13.0 2.8 8.0

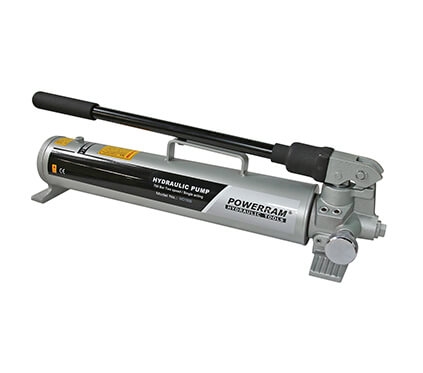

HC1500 20 700 1200 13.0 2.8 11.2

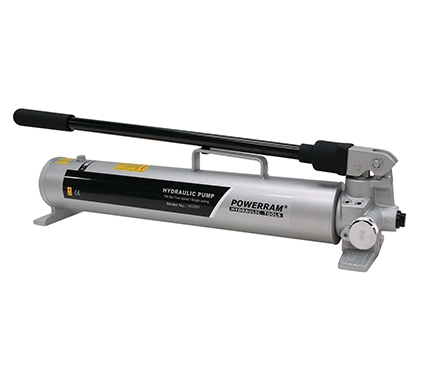

HC2500 20 700 2200 13.0 2.8 12.0

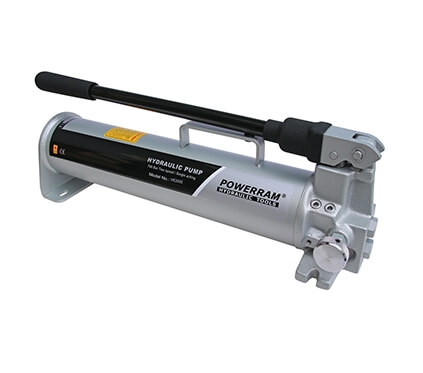

HE2000 20 700 1800 13.0 2.8 11.5
HE2421 20 700 1800 13.0 2.8 12.0
HF350 20 700 280 7.0 1.0 5.5

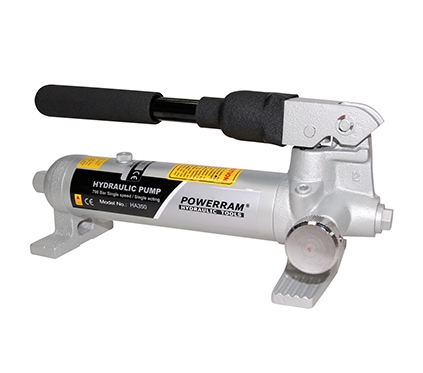

HA350 200 - 280 3.2 - 5.7
HA600 700 - 550 3.2 - 7.1
HA700 700 - 640 3.2 - 7.6
HD300 700 - 200 2.8 - 4.4
HD500 700 - 400 2.8 - 5.4
