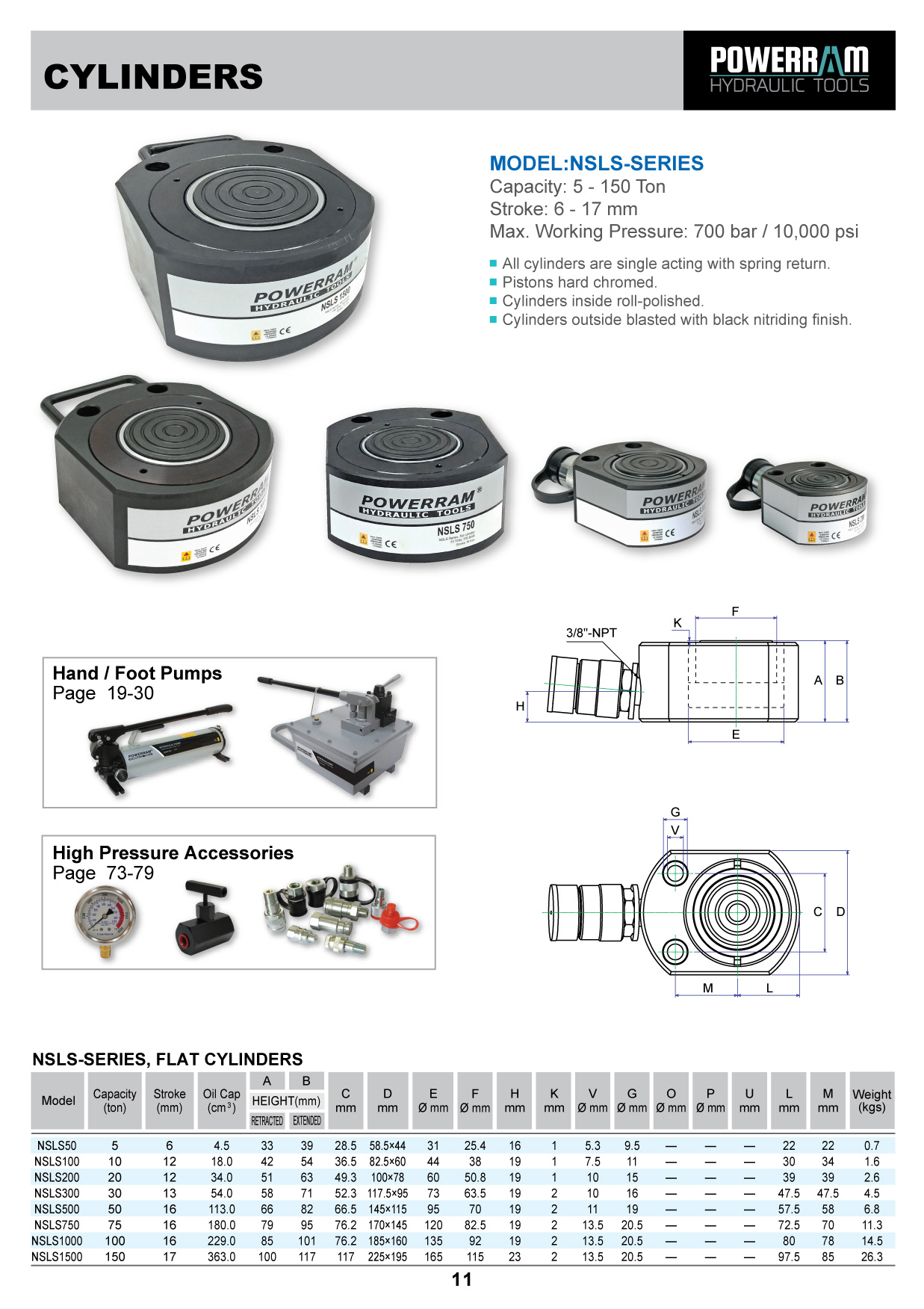

Single Acting / Flat Type
- All cylinders are single acting with spring return.
- Pistons hard chromed.
- Cylinders inside roll-polished.
- Cylinders outside blasted with black nitriding finish.
| NSLS-SERIES, FLAT CYLINDERS | ||||||
|---|---|---|---|---|---|---|
| Model No. | Capacity (ton) | Storke (mm) | Oil Capacity (cm3) | Height (mm) | WEIGHT (kgs) | |
| Retracted | Extended | |||||
| NSLS50 | 5 | 6 | 4.5 | 33 | 39 | 0.7 |
| NSLS100 | 10 | 12 | 18.0 | 42 | 54 | 1.6 |
| NSLS200 | 20 | 12 | 34.0 | 51 | 63 | 2.6 |
| NSLS300 | 30 | 13 | 54.0 | 58 | 71 | 4.5 |
| NSLS500 | 50 | 16 | 113.0 | 66 | 82 | 6.8 |
| NSLS750 | 75 | 16 | 180.0 | 79 | 95 | 11.3 |
| NSLS1000 | 100 | 16 | 229.0 | 85 | 101 | 14.5 |
| NSLS1500 | 150 | 17 | 363.0 | 100 | 117 | 26.3 |
