Product Introduction
HEAVY DUTY HAND PUMPS
Product Name : Heavy Duty Hand Pumps
Product No : PA-PB
MODEL: PA & PB SERIES
Single & Dual-speed models
Large 3/8" NPT pressure port for max. flow
Low handle force for easy operation
Max. working pressure: 700 bar
  • Powerram heavy duty hand pumps are feature with forged and welded construction to prevent collision and deformation.
  • Professional choice for a wide range of industrial applications.
  • Both single and Dual-speed models are available.
  • Internal overload relief valve prevents pump from being used beyond tis rated capacity.
  • External adjustable relief valve with anti-losing mechanism design.
  • Carrying handle for easy portability.
Single-Speed Heavy Duty Hand Pumps
Model No.Pressure Rating (bar)Usable Oil Capacity (c.c.)Oil Volume per Stroke (c.c.)Weight (kgs)

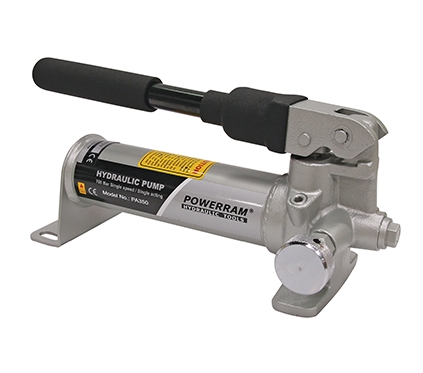

PA350 200 250 3.1 5.0

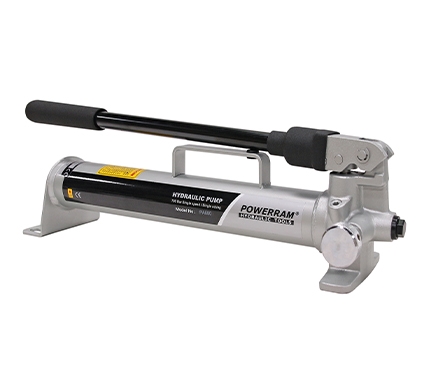

PA600 700 550 3.1 6.1
PA700 700 640 3.1 6.5
Dual-Speed Heavy Duty Hand Pumps
Model No.Pressure Rating (bar)Usable Oil Capacity (c.c.)Oil Volume per Stroke (c.c.)Weight (kgs)
1st Stage 2nd stage 1st Stage 2nd stage
PB350 20 700 250 13.0 2.8 5.5
PB600 20 700 550 13.0 2.8 7.0

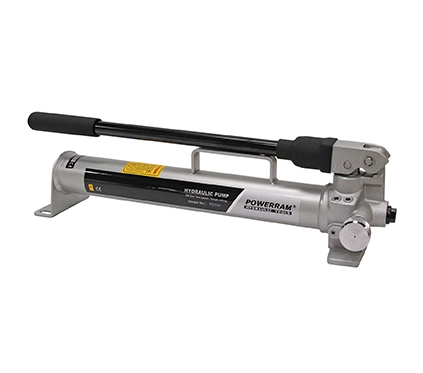

PB700 20 700 640 13.0 2.8 7.3
