PME100T / PME100TE
PME100T / PME100TE
Product Introduction

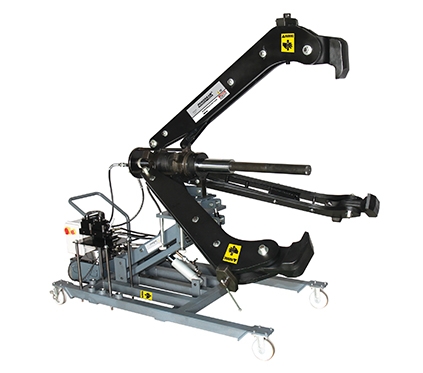

100 Ton Easy Puller
Product Name : PME100T / PME100TE
Product No : PME100T
Efficient and safe solution to dismount all kinds of transmission parts.
  • Double acting hydraulic system for holding, opening & closing jaws for safe & secure grip on work object.
  • Self-centering design keeps puller jaws clamp work object evenly and automatically.

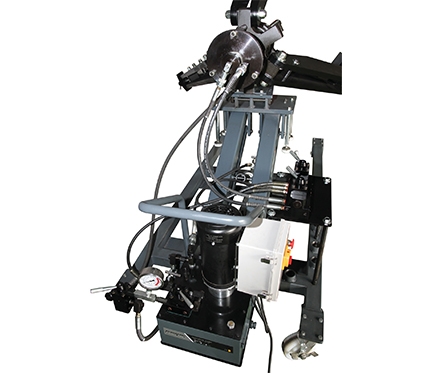

  • Electrical hydraulic pump advances and retracts the pushing cylinder only to prevent operating errors from happening.
  • The easy jaw head adjusting system prevents puller jaws from sliding and spring off the work object being pulled.
  • Puller can be converted into 2 or 3-way configurations.
  • Puller can be adjusted with 5 degree up/down of puller centerline for precisely positioning.
  • The cart swivel castors provide movement of car easily.
  • Electrical hydraulic pump is two stage version: the low pressure stage provides the fast stroking to save time; the high pressure stage is controlled by remote switch.
  • 100 Ton cylinder is 2-stage, spring return type with a maximum working pressure of 10, 000 psi.
  • Five extension adapters are standard attachments for the needs on extra stroke.
  • Integrated Control System for operating Lift and Push easily and efficiently by Electric Pump only. (Equipment on requesting )
  • ** These models are patented in Taiwan & Germany, and patent pending in USA & PRC.
Model No.Reach (Max/mm)Spread (Min-Max)Stroke (mm)Overall Dimension
(mm)
Power Source
(mm)
Weight
(kg)
PME100T 952 - 1220 300 - 1500 270 2915x1035x1350 --- 1120
PME100TE* 952 - 1220 300 - 1500 270 2915x1035x1350 ** 1185
* This model is equipped with the Electric Pump according to Customer's requirement.
** ELECTRIC PUMPS - We suggest two models of EP211 & EP420 as the options.
   Please contact with our distributors for further information.
