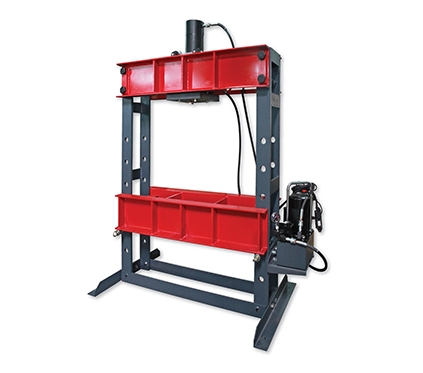

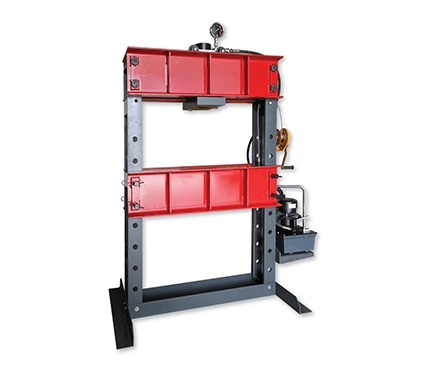

50 & 100 Ton Shop Presses
- Ideal for the pressing job for in the work shops.
- Rugged Steel frame provides maximum rigidity and never bended.
- Multiple working position for press bed.
- Steel cross brace prevents the frame from spreading under the load.
- 50 & 100 Ton, Single Acting, 13" & 18" stroke Rams are available for requesting.
- 50 & 100 Ton, Double Acting, 13" & 18" Stroke Rams are available for requesting.
- 50 Ton, Hand Pump, Air Pump & Electric Pumps are available upon request.
- 100 Ton, Electric Pumps are available as the optional version.
| Model No. | Capcitya (ton) | Stroke (mm) | Pump Model | Oil Cap. (c.c.) | Motor | Weight (kg) | Accessory Set | |
|---|---|---|---|---|---|---|---|---|
| HSP5013H | 50 | 330 | HP80 | 7,000 | — | 440 | *Long V-Blocks *V-Base *Ram pushing adaptor |
|
| HSP5013S | 50 | 330 | EP18S | 8,000 | 0.45kW 220V 50/60 Hz Single phase | 480 | ||
| HSP5018D | 50 | 457 | EP18D | 8,000 | 0.45kW 220V 50/60 Hz Single phase | 480 | ||
| HSP10013S | 100 | 330 | EP211S | 11,000 | 1.12kW 220V 50/60 Hz Single phase | 840 | *V-Base *Ram pushing adaptor |
|
| HSP10018D | 100 | 457 | EP211D | 11,000 | 1.12kW 220V 50/60 Hz Single phase | 840 | ||
| *The above accessory sets will be changed according to the Selected Cylinder. | ||||||||
