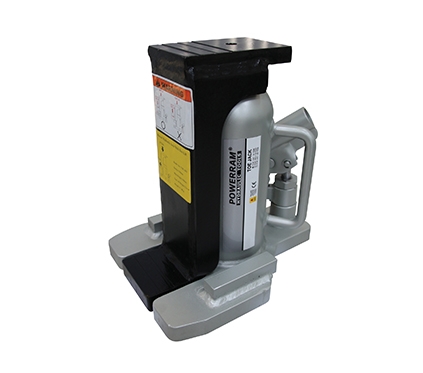

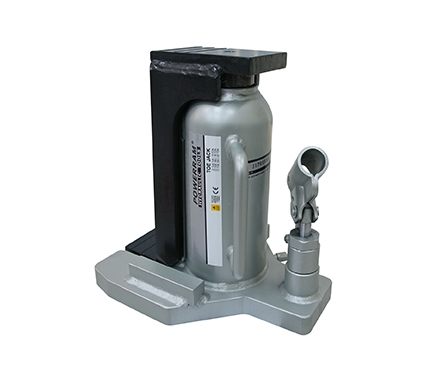

Toe Jacks
- Heat treated & chrome plated hydraulic rod provide longer seal life and optimum performance.
- Internal safety valve prevents toe jack from being used beyond its rated capacity.
- Housing welding onto the forged base ensures to be free of leakage problem.
- High strength Toe-Lift for long life use.
- Low toe heights fit in tight clearances.
- Swivel sockets for easy operation.
- Can be operated quickly by hand without a loading.

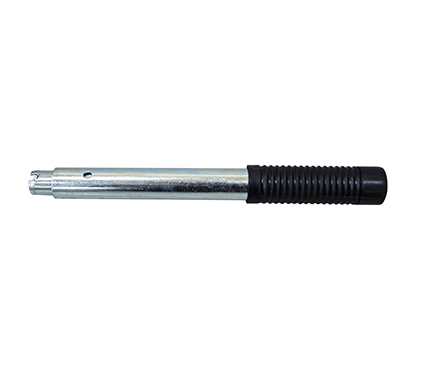

- Removable handle saves the handle force during operation.
- Max. working pressure 700 bar / 10,000 psi.
| Model No. | Top Cap | Toe-Lift Cap | Stroke | Min. Height | Max. Height | Weight |
|---|---|---|---|---|---|---|
| U (Tons) | F (Tons) | (mm) | A (mm) | B (mm) | (kg) | |
| TOE-060 | 6 | 3 | 110 | 212 | 322 | 11.3 |
| TOE-100 | 10 | 5 | 130 | 258 | 388 | 17.0 |
| TOE-160 | 16 | 8 | 131 | 275 | 406 | 25.7 |
| TOE-200 | 20 | 10 | 140 | 303 | 443 | 33.1 |
| TOE-300 | 30 | 15 | 147 | 322 | 469 | 52.0 |
| TOE-500 | 50 | 25 | 148 | 333 | 481 | 84.0 |
