AP13
AP13
Product Introduction

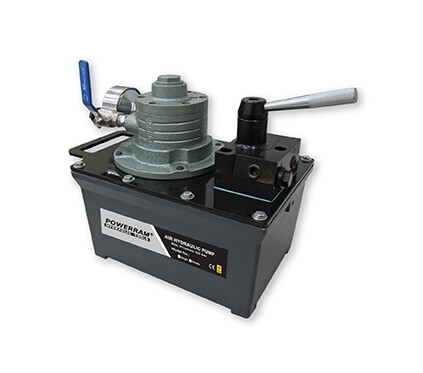

Air Hydraulic Pump
Product Name : AP13
Product No : AP13
MODEL: AP13 SERIES
Single & Double acting models
Max. working pressure:700 BAR
  • Dual-speed operation for fast speed cylinder advance.
  • 3L durable aluminum reservoir design.
  • Air motor capable of starting under full load.
  • Automatic overload relief valve protects components in hydraulic system and ensure safe operation.
Model No.ActingMax.Pressure
Output(psi)
Reservori
Capacity
(c.c.)
Usable Oil
Capacity
(c.c.)
ValveWeight
(kg)
Type Function
AP13S Single 10,000 3000 2400 2 Position
/ 2 Way
Advance
/ Retract*
18.7
AP13D Double 10,000 3000 2400 3 Position
/ 4 Way
Advance / Hold /
Retract
18.7
* The weight is excluding the hydraulic oil.

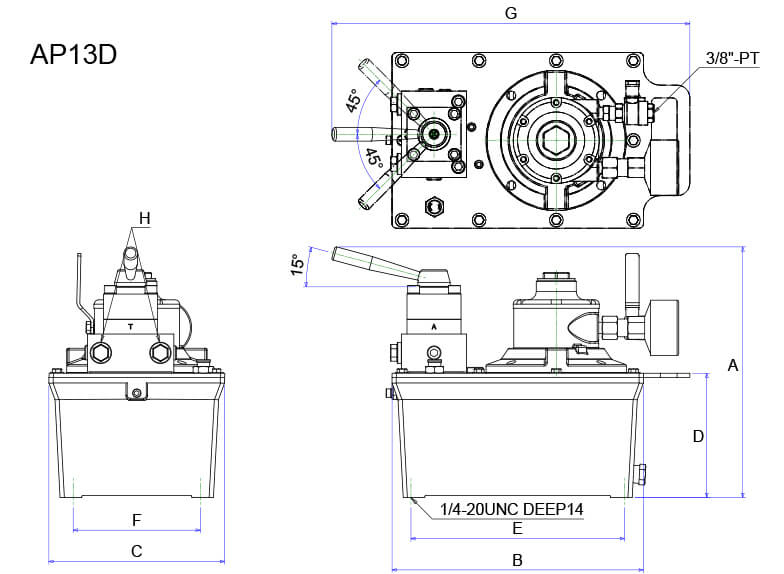

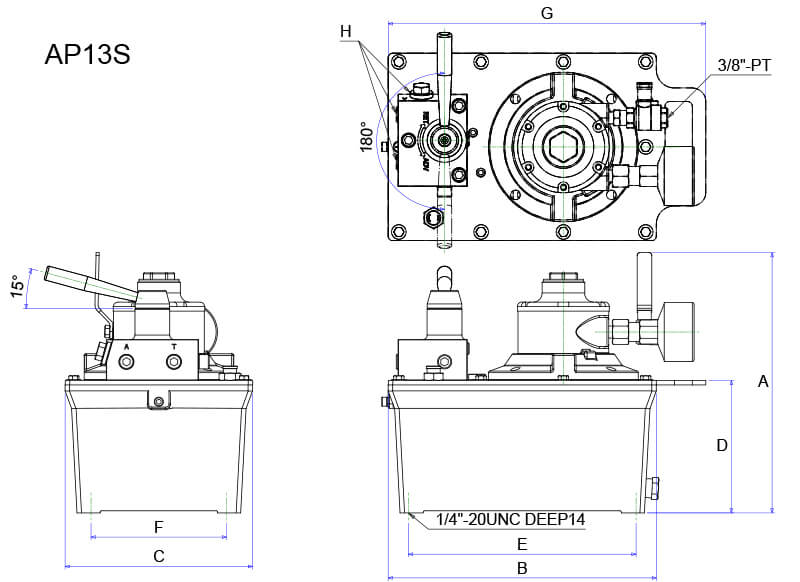

proimages/pd/Pumps/05Air Hydraulic/Drawings/AP13D目錄.jpgproimages/pd/Pumps/05Air Hydraulic/Drawings/AP13S目錄.jpg

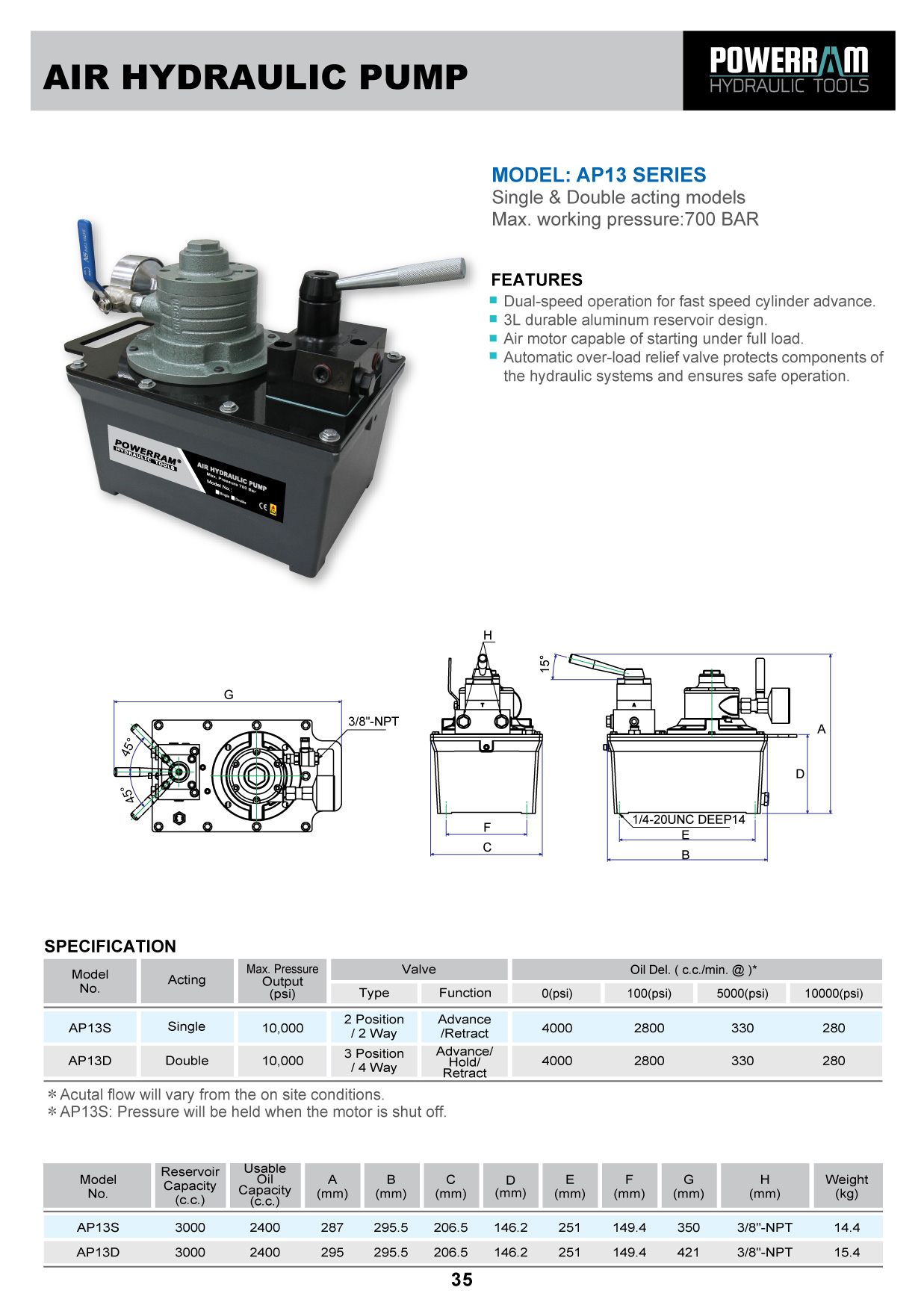

proimages/Download/18powerram-29.jpg
