Product Introduction
HEAVY DUTY HAND PUMP
Product Name : P90X
Product No : P90X
MODEL: P90 SERIES
Single & Dual speed models
Max. working pressure:
700 - 1000 bar
  • High pressure hydraulic hand pumps are the solution for tough jobs.
  • Reduced handle effort and ergonomic grip for less operator fatigue.
  • Dual-speed operation for fast and easy operation.
  • Vent free reservoir eliminated spills.
  • Quick grip handle allows for easy transport.
  • Integral reservoir with over-pressurization protection.
  • Chrome plated plunger and wiper system for durable, long lasting performance.
Model No.Pressure Rating (bar)Oil Capacity (c.c.)Oil Displacement per Stroke (c.c.)Weight (kgs)
1st Stage 2nd stage 1st Stage 2nd stage

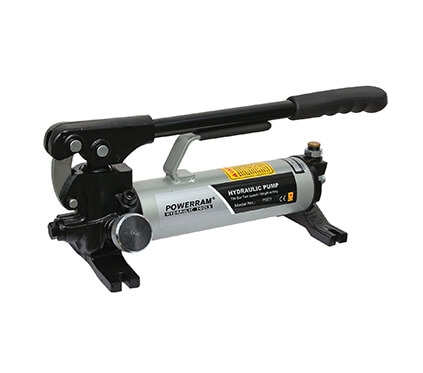

P901 20 700 450 19.4 1.2 6.5

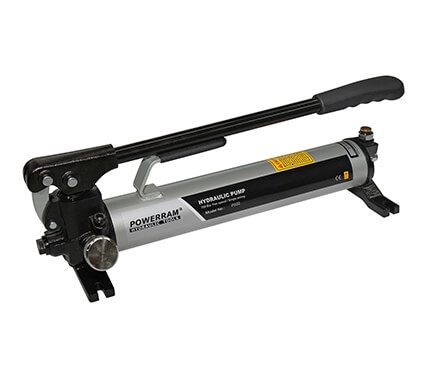

P902 20 700 850 19.4 2.8 7.8

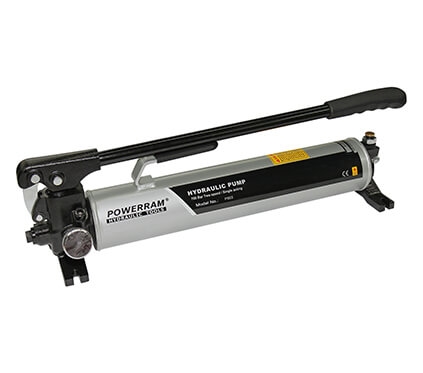

P903 20 700 1600 19.4 2.8 10

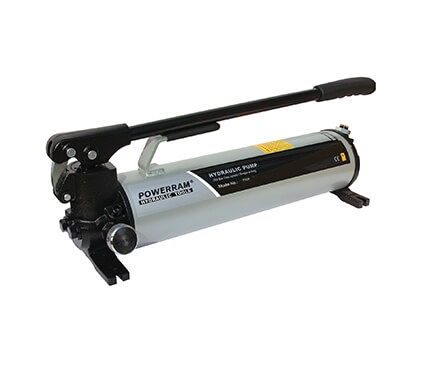

P904 27.5 700 2500 39.5 2.8 13.5

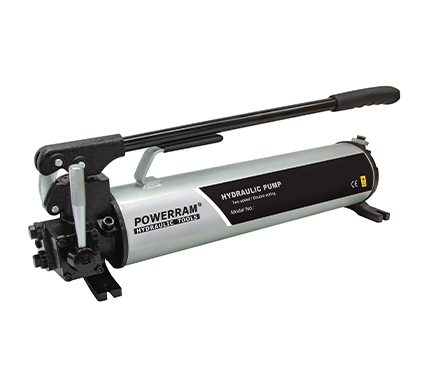

P904D 27.5 700 2500 35.6 2.8 15

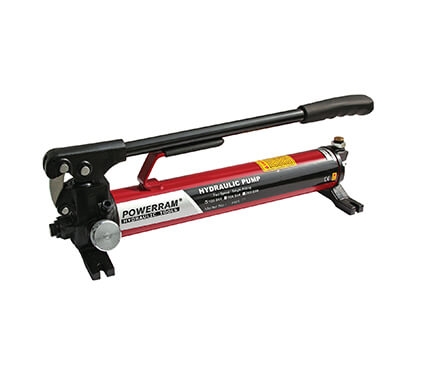

P905 20 1000 850 19.4 1.2 7.8
