Product Introduction

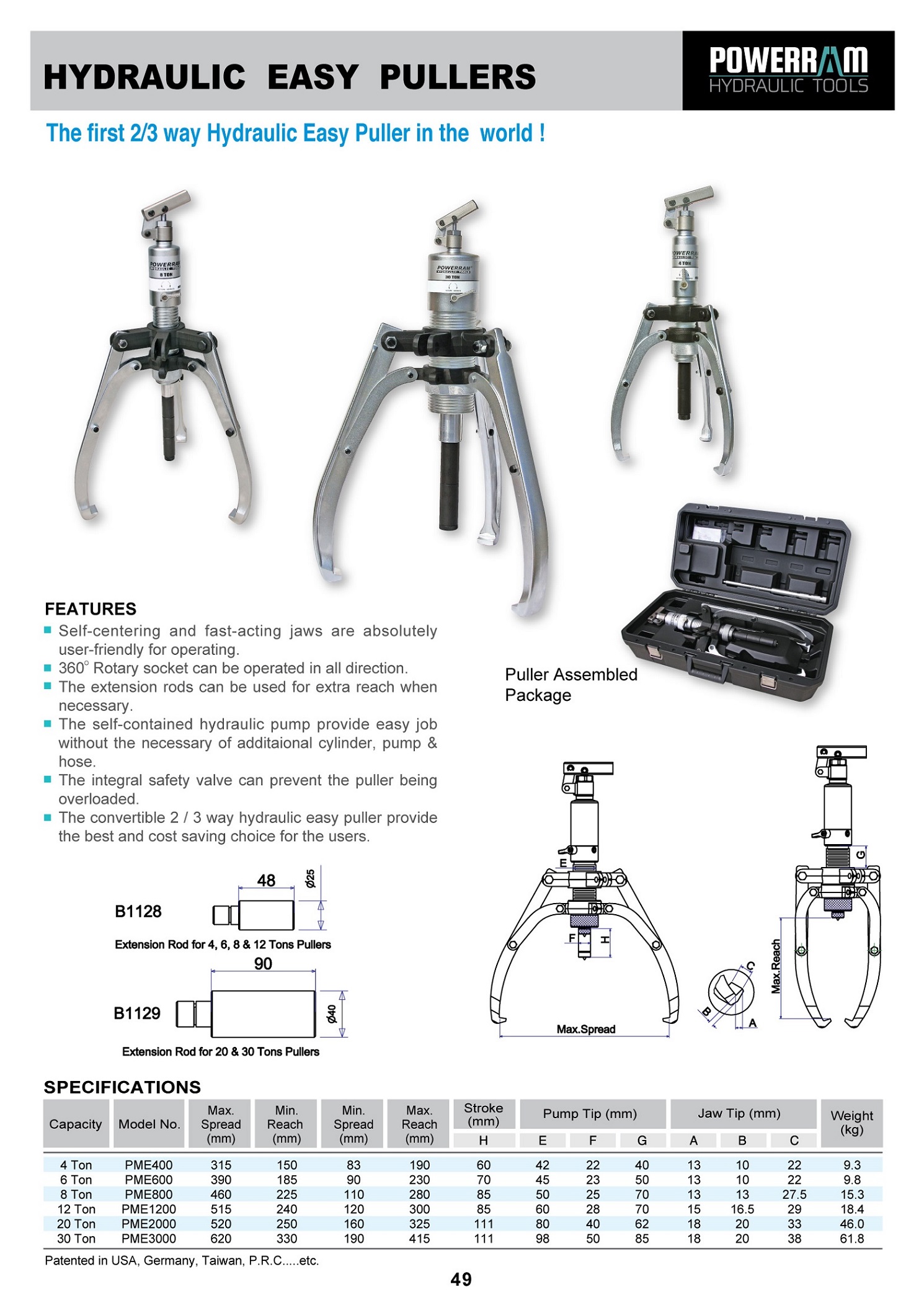

HYDRAULIC EASY PULLER
Product Name : PME400 - PME3000
Product No : PME400-PME3000
Capacity: 4 - 30 Ton
Max. Reach: 190 - 415mm
Max Spread: 315 - 620mm
USER-FRIENDLY
  • Self-centering puller with convertible 2/3 jaws which is easy to operate by one person.
  • 360o rotary handle socket enables the user to operate the pumping all directions.
  • Extension rods allow the user to extend the stroke according to the needs.
SAFE
  • The integral safety releasing valve prevents overloading or exceed maximum capacity.
  • Self-locking jaws prevent the puller jaw from slipping off under loading.
ECONOMICAL
  • The first 2/3 way Hydraulic Easy puller save your man power and cost by integrated pump and cylinder.
Hydraulic Easy Pullers
CapacityModel No.Reach (Max. mm)Spread (Max. mm)Stroke (mm)Weight (kg)
H
4 Ton PME400 190 315 60 8.0
6 Ton PME600 230 390 70 9.8
8 Ton  PME800 280 460 85 11.7
12 Ton  PME1200 300 515 85 14.8
20 Ton  PME2000 325 520 111 25.7
30 Ton PME3000 415 620 111 36.0
