20 & 30 Ton Shop Presses
- Rugged Steel frame provides maximum firmness to prevent bending.
- Multiple working position for press bed.
- Steel cross support prevent the frame from bending while loading.
- Single-acting and spring return cylinders with 5" & 8" stroke is horizontal movement on head channel.
| Model No. | A | B | C | D | Weight (kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Long V-block | V base | 3/4" shank Ram pushing adaptor |
1" shank Ram pushing adaptor |
|||||||||
| BP201 | E0662 | E0064 | B0562 | B0563 | 17.0 | |||||||
| Model No. | Capacity (ton) | Stroke (mm) | Pump Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kg) | |
| SP2101 | 20 | 128 | HB700 | 1650 | 790 | 700 | 510 | 125 | 233-1072 | 120 | 183 | |

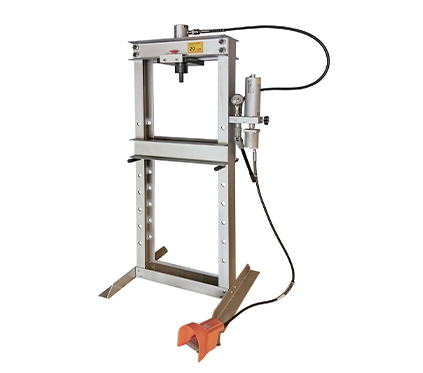

| SP2201 | 20 | 128 | PTS900A | 1650 | 790 | 700 | 510 | 125 | 233-1072 | 120 | 186 | |
| SP3101 | 30 | 204 | HC1500 | 1631 | 920 | 700 | 620 | 150 | 306-1025 | 120 | 244 | |
| SP3201 | 30 | 204 | PTS900A | 1631 | 920 | 700 | 620 | 150 | 306-1025 | 120 | 249 | |
