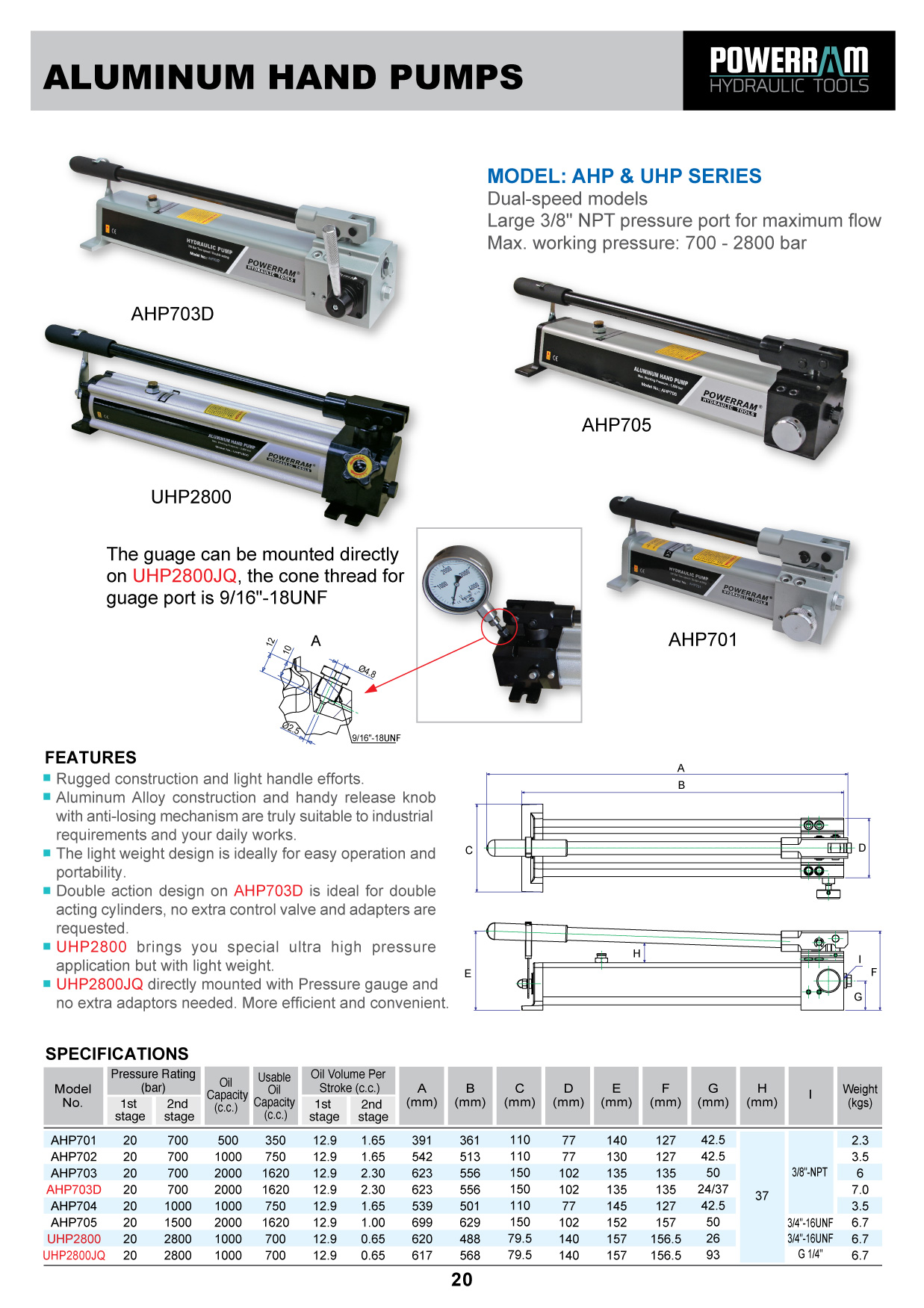

Aluminum Hand Pumps
.jpg "Aluminum Hand Pumps")
- Rugged construction and light handle efforts.
- Aluminum Alloy construction and handy release knob with anti-losing mechanism are truly suitable to industrial requirements and your daily works.
- The light weight design is ideally for easy operation and portability.

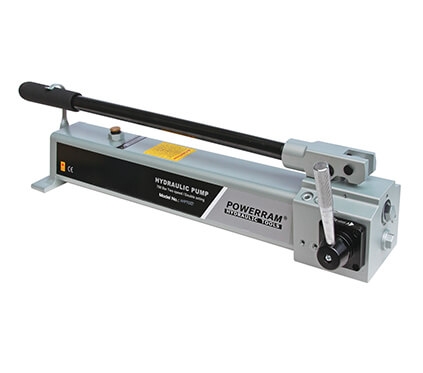

- Double action design on AHP703D is ideal for double acting cylinders, no extra control valve and adapters are requested.

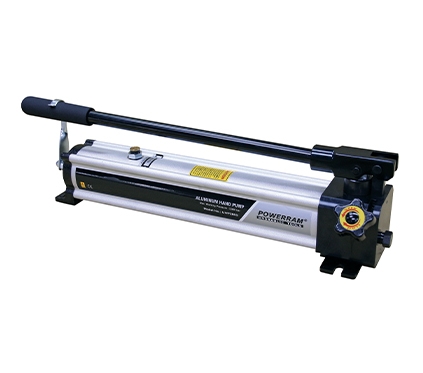

- UHP2800 brings you special ultra high pressure application but with light weight.

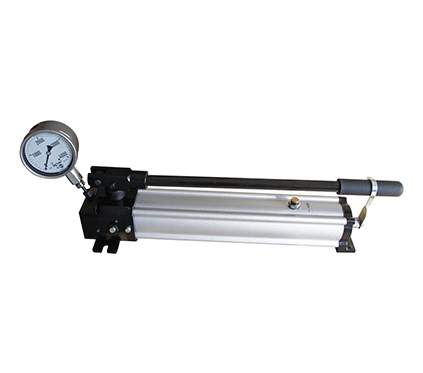

- UHP2800JQ directly mounted with Pressure gauge and no extra adaptors needed. More efficient and convenient.
| Model No. | Pressure Rating (bar) | Oil Capacity (c.c.) | Oil Volume per Stroke (cm2) | Weight (kgs) | ||
|---|---|---|---|---|---|---|
| 1st Stage | 2nd stage | 1st Stage | 2nd stage | |||

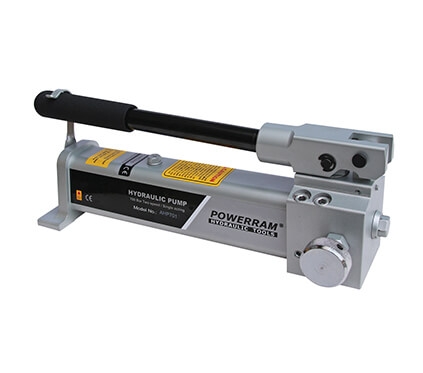

| AHP701 | 20 | 700 | 500 | 12.9 | 1.65 | 2.3 |

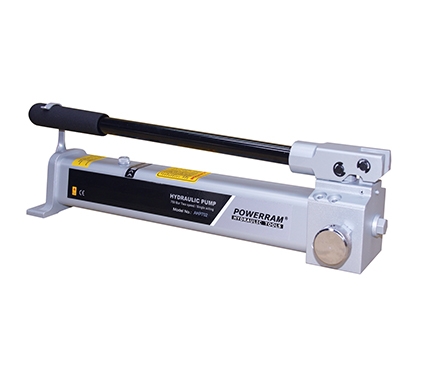

| AHP702 | 20 | 700 | 1000 | 12.9 | 1.65 | 3.5 |
| AHP703 | 20 | 700 | 2000 | 12.9 | 2.30 | 6.0 |
| AHP703D | 20 | 700 | 2000 | 12.9 | 2.30 | 7.0 |

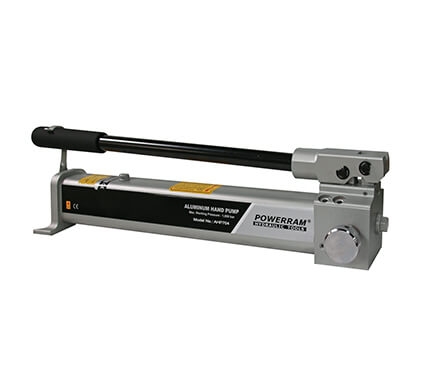

| AHP704 | 20 | 1000 | 1000 | 12.9 | 1.65 | 3.5 |

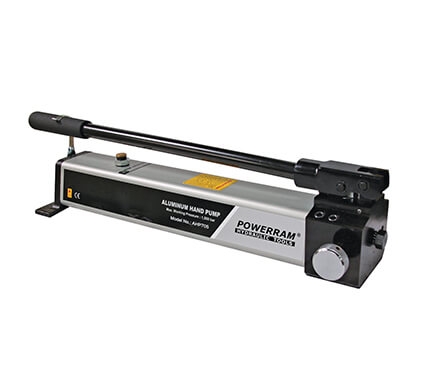

| AHP705 | 20 | 1500 | 2000 | 12.9 | 1.00 | 6.7 |
| UHP2800 | 20 | 2800 | 1000 | 12.9 | 0.65 | 6.7 |
| UHP2800JQ | 20 | 2800 | 1000 | 12.9 | 0.65 | 6.7 |
