ALUMINUM CYLINDERS

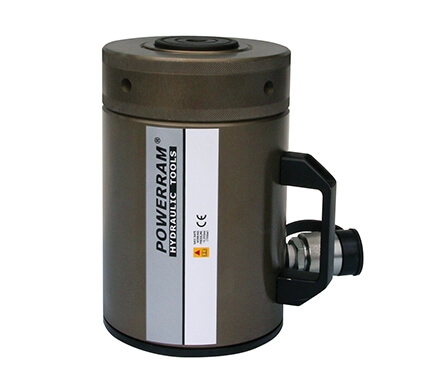

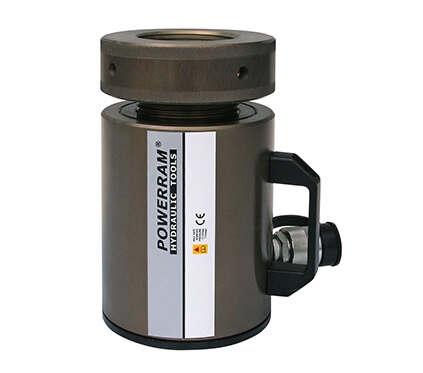

Product Name : Single Acting / Lock Nut
Product No : ALNC
Model: ALNC Series
Capacity: 20 - 100 Ton
Stroke: 50 - 250 mm
Spring Return, Lock Nut Type
Max. Working Pressure: 700 bar / 10,000 psi
  • Half weight of steel cylinders
  • Heavy duty spring for easy and full retraction
  • Carry handles are standard for all models.
  • Hard-Anodized housing and piston reduce wear and corosion.
  • Rod wiper protects inner rod from dirt.
  • Stop ring provides blow-out protection for piston.
Model NumberCylinder Capacity (tons)STROKE (mm)Cylinder Effective Area (cm2)Oil Capacity (cm3)Collapsed Height A (mm)Extended Height B (mm)Lock Nut Hight S (mm)Weight (kg)
ALNC202 20 50 30.2 151 193 243 25 4.8
ALNC204 100 30.2 302 243 343 25 5.7
ALNC206 150 30.2 453 293 443 25 6.3
ALNC208 200 30.2 604 343 543 25 6.9
ALNC302 30 50 44.2 221 205 255 30 6.9
ALNC304 100 44.2 442 255 355 30 7.7
ALNC306 150 44.2 662 305 455 30 8.6
ALNC308 200 44.2 883 355 555 30 9.6
ALNC502 50 50 70.8 354 212 262 43 9.3
ALNC504 100 70.8 708 262 362 43 10.7

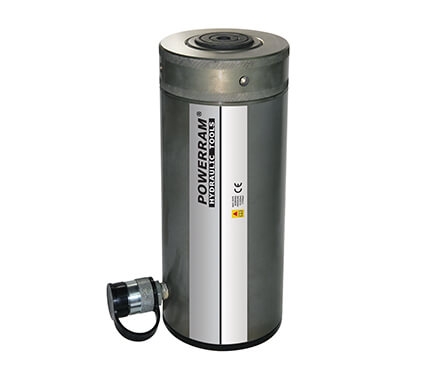

ALNC506 150 70.8 1063 312 462 43 14.5
ALNC508 200 70.8 1417 362 562 43 14.5
ALNC5010 250 70.8 1771 412 662 43 16.5

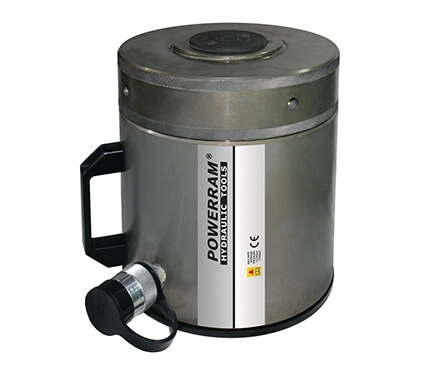

ALNC1002 100 50 143 715 235 285 51 21.9
ALNC1004 100 143 1431 285 385 51 25.2
ALNC1006 150 143 2146 335 485 51 29.2
ALNC1008 200 143 2861 385 585 51 33.0
ALNC10010 250 143 3577 435 685 51 35.4
