Air Hydraulic Foot Pumps
.jpg "Air Hydraulic Foot Pumps")
- Oil capacity can be modified according to your specific application.
- Air-power hydraulic pump is designed for using with single-acting cylinders and tools.
- Rugged construction that most components are made of Aluminum alloy and built for long service life, easy operation and portability.
- Automatic overload relief setting as 10, 000 psi protects components in hydraulic system and ensure work safety.
- New inlet & outlet design features low exhausting air volume, quiet effect and can be operated in all directions.
| Model No. | Acting | Max.Pressure Output(psi) | Input Air Pressure (kg) | Reservoir Capacity (c.c.) | Usable Oil Capacity (c.c.) | Valve | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|
| Type | Function | |||||||

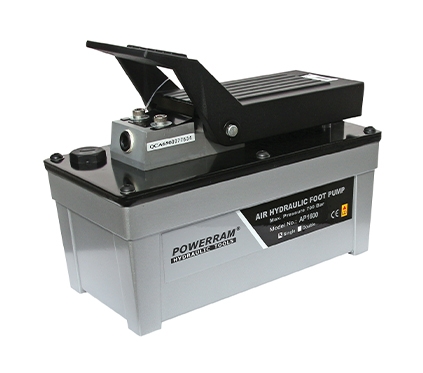

| AP1600S | Single | 10,000 | 7-10 | 1600 | 1300 | ─ | Advance | 7.3 |

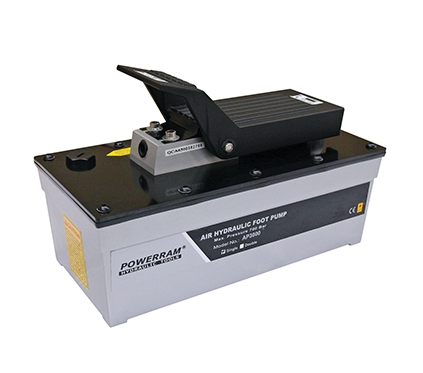

| AP3000S | 10,000 | 7-10 | 3000 | 2500 | 9.1 | |||

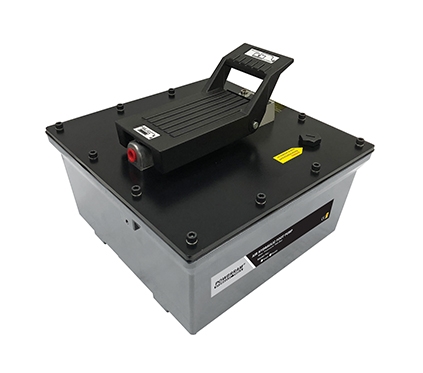

| AP8000S | 10,000 | 7-10 | 8000 | 7200 | 19.1 | |||

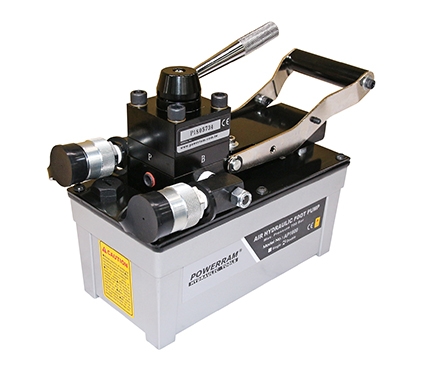

| AP1600D | Double | 10,000 | 7-10 | 1600 | 1300 | 3 Position / 4 Way |
Advance / Hold / Retract |
9.3 |

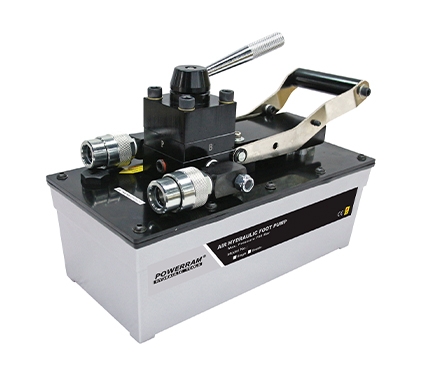

| AP3000D | 10,000 | 7-10 | 3000 | 2500 | 12.0 | |||
| AP8000D | 10,000 | 7-10 | 8000 | 7200 | 31.5 | |||
