Product Introduction
Electric Pump
Product Name : ELECTRIC PUMP
Product No : EP18
MODEL: EP18 SERIES
ELECTRIC PUMPS, 8 LITER
Max. Working Pressure: 700 Bar / 10,000 psi
  • Original pumps are built with 1/2 HP, 220V, 50/60Hz, Single phases universal brushless motor
  • Internal relief valve (700 bars) protects the components and work safety.
  • Pumps are included with 24V, 3 meters remote control cord.
  • Quiet pumps comply OSHA noise limitation (80dBA at 700bar).
  • EP18D specially designed for double-acting cylinders without the need for additional control valve and adapters.
  • Conform to CE standards.
  • Both models are available with Solenoid Valve version.
Model No.ActingRPM
50/60 Hz
Reservoir
Capacity
(c.c.)
Usable Oil
Capacity
(c.c.)
MotorValveWeight
(kg)
Type Function

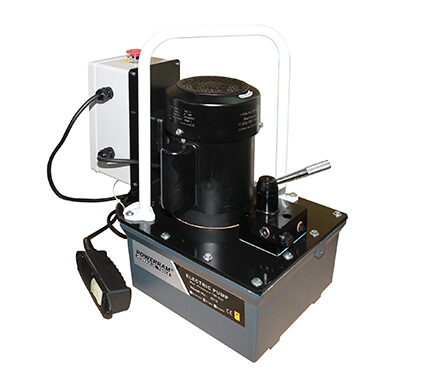

EP18S Single 2860 / 3450 8,000 7,200 0.45 KW
110V / 220V
50/60 Hz
Single Phase
2 Position
/ 2 Way
Hold
/Retract
32.0
EP18SS*

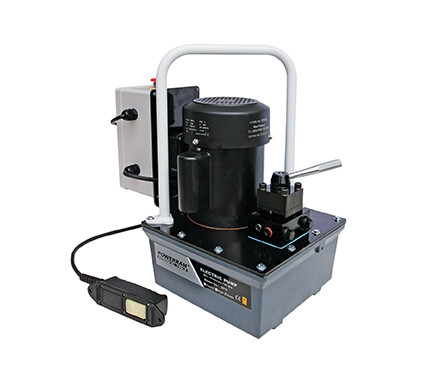

EP18D Double 3 Position
/ 4 Way
Adv./Hold
/Retract
EP18DS*
* Solenoid version
The weight is excluding the hydraulic oil.
