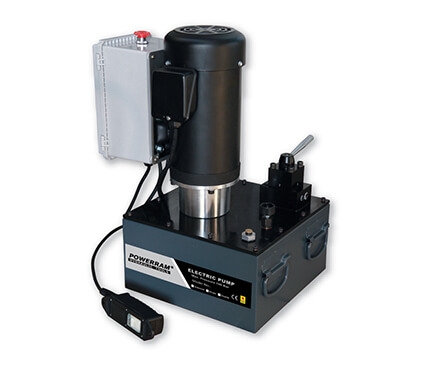

Electric Pumps - 20 Ltr / 1.48kW
- Original pumps are built with 1.48kW, 220/380V, 50/60Hz, 3 phases universal brushless motor.
- Internal relief valve (700 bars) protects the components and work safety.
- Pumps are included with 24V, 3 meters remote control cord.
- Quiet pumps comply OSHA noise limitation (80dBA at 700bar).
- EP320D specially designed for double-acting cylinders without the need for additional control valve and adapters.
- Internal relief valve limits pressure to 10,000 psi. External relief valve is adjustable from 1,000 to 10,000 psi.
- Conform to CE standards.
- Both models are available with Solenoid Valve version.
| Model No. | Acting | RPM 50/60 Hz | Reservoir Capacity (c.c.) | Usable Oil Capacity (c.c.) | Motor | Valve | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|
| Type | Function | |||||||
| EP320S | Single | 1435 / 1735 | 20,000 | 18,000 | 1.48 kW 220V/380V 50/60 Hz 3 Phase |
2 Position / 2Way |
Hold / Retract |
56.0 |
| EP320SS* | ||||||||
| EP320D | Double | 3 Position / 4 Way |
Adv. / Hold / Retract |
|||||
| EP320DS* | ||||||||
| *Solenoid version The weight is excluding the hydraulic oil. |
||||||||
