Product Introduction
Low Height Jacks

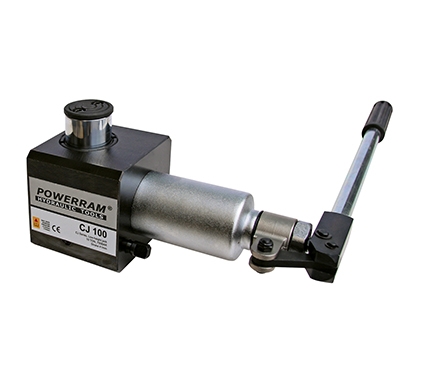

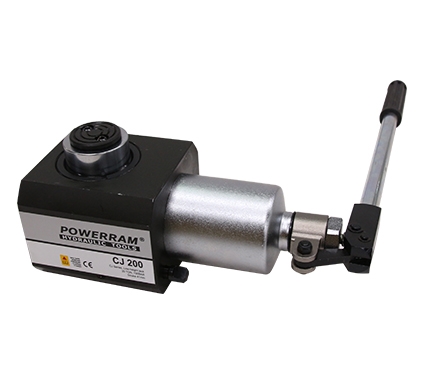

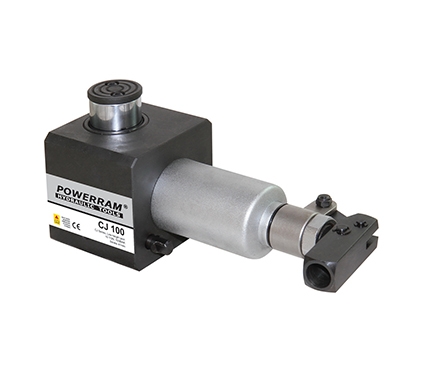

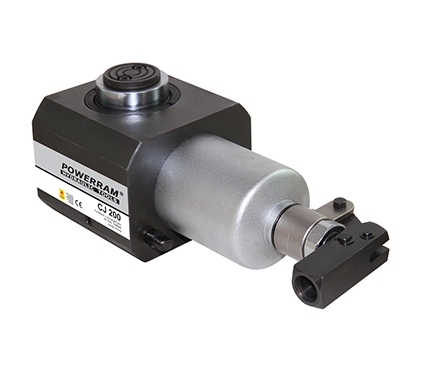

Product Name : Low Height Jacks
Product No : CJ100-CJ200
Model:CJ Series
Capacity:10-20 Tons
  • Integrated pump & spring return cylinders, with low build-in height.
  • Max. working pressure: 10,000 psi / 700 bar.
  • Hard chromed piston.
  • Ram inside roll polished.
  • Perfect for jobs with limited spaces, for example: positioning machines, mounting tools or load tests.

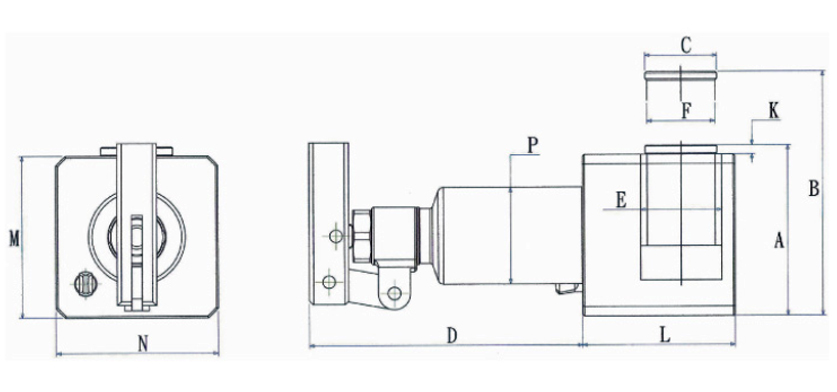

Model No. Capacity Storke Oil Capacity Height (mm) C D E F H K L M N P Weight
(ton) (mm) (c.c.) A
Retracted
B
Extended
Ø (mm) (mm) Ø (mm) Ø (mm) (mm) (mm) (mm) (mm) (mm) Ø (mm) (kg)
CJ100 10 40 155 95 135 40 152.5 45 37.95 407.5 4.9 85 90 90 53.8 6.8
CJ200 20 41 250 95 135 40 152.5 65 50.8 407.5 4.9 110 90 110 69.8 9.6
