Product Introduction
STEEL CYLINDERS
Product Name : Single Acting / Telescopic Type
Product No : NSLS-Telescopic
Model: NSLS-Telescopic Series
Capacity: 10 ~ 35 Ton
Stroke: 12 ~ 135 mm
Max. Working Pressure: 700 bar / 10,000 psi
Inquiry
  • NSLS Telescopic Cylinders have a build-in matting and long stroke.
  • They are perfect for those who works with different types of service job in tight spaces and want to combine large forces with long stroke.
  • Available in three different sizes: 10+5 Ton, 20+10 Ton and 35+14 Ton.
  • Single Acting, Load Return
  • Pistons hard chromed.
  • Cylinders inside roll-polished.
  • Cylinders outside blasted with black nitriding finish.
  • Use in combination with hand / foot pumps (Page 19-30), and accessories (page 73-79)
NSLS TELESCOPIC CYLINDERS
Model No.Capacity (ton)Storke (mm)Oil Capacity (cm3)Height (mm)Weight (kgs)
1st 2nd S1 S2 Retracted Extended

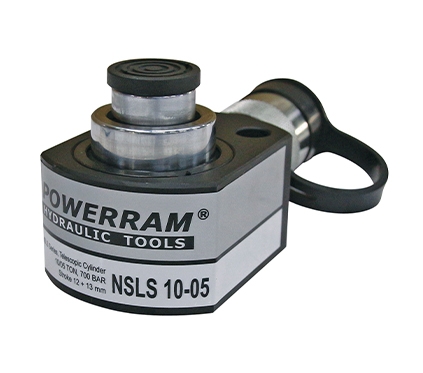

NSLS10-05 10 5 12 13 29.0 42 67 1.6

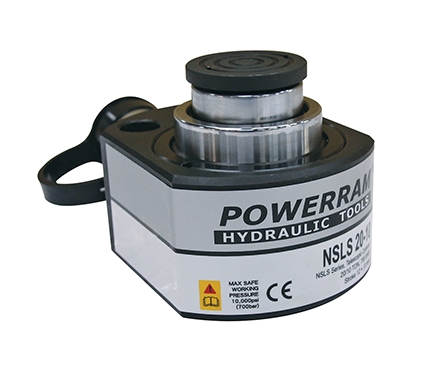

NSLS20-10 20 10 12 13 55.0 51 76 2.6

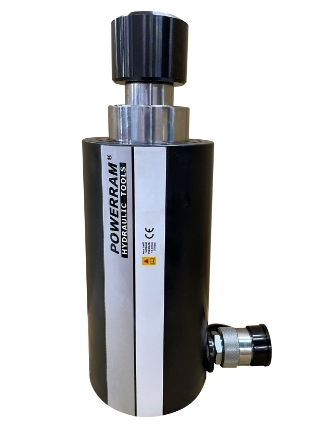

NSLS35-14 35 14 135 135 944 283 553 16.1

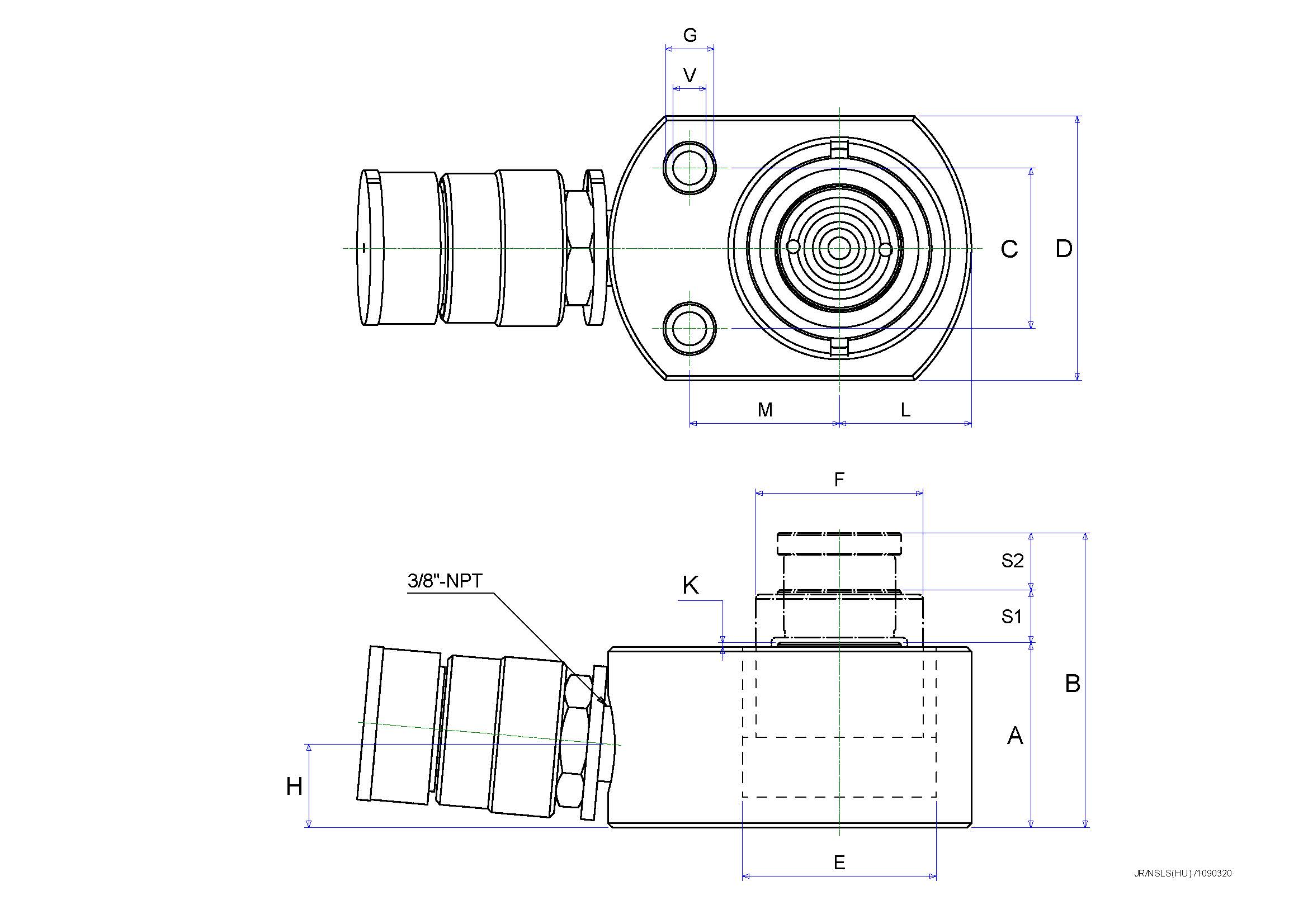

proimages/0530/Drawaing/P12_-_NSLS10-05N_(HU).jpg
