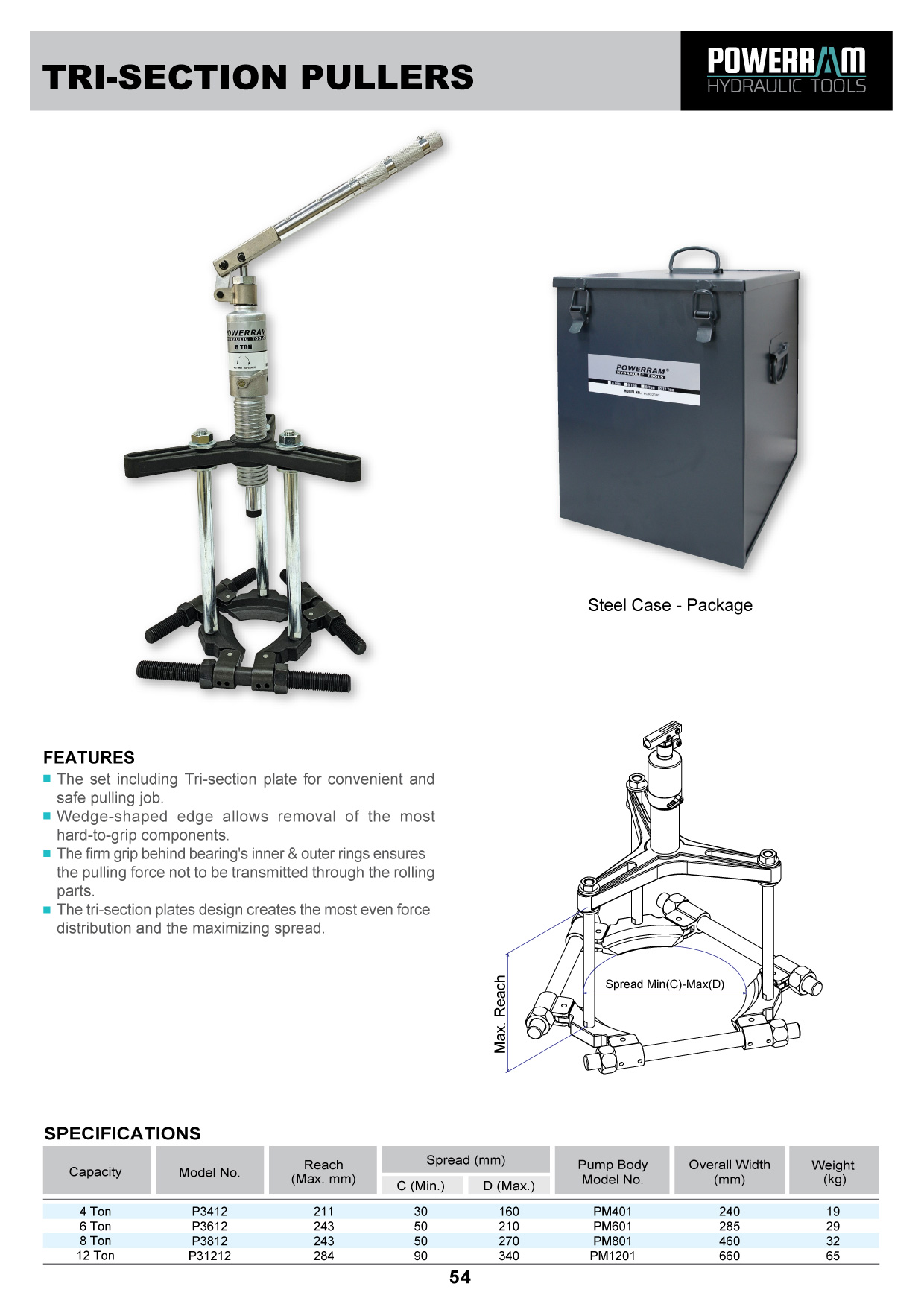

TRI-SECTION PULLER
TRI-SECTION PULLER
Product Introduction
Tri-Section Puller
Product Name : TRI-SECTION PULLER
Product No : P3412-P31212
Capacity: 4 - 12 Ton
Reach: 211 - 284mm
Max Spread: 160 - 340mm
  • The set including Tri-section plate for convenient and safe pulling job.
  • Wedge-shaped edge allows removal of the most hard to grip components.
  • The firm grip behind bearing's inner & outer rings ensures the pulling force not to be transmitted through the rolling parts.
  • The tri-section plates design creates the most even force distribution and the maximizing spread.
Tri-section Pullers
CapacityModel No.ReachSpread (mm)Optional Pump BodyOverall WidthWeight
(Max. mm) C (Min) D (Max) (mm) (kg)
4 Ton P3412 211 30 160 PM401 240 20
6 Ton P3612 243 50 210 PM601 285 30
8 Ton P3812 243 50 270 PM801 460 34
12 Ton P31212 284 90 340 PM1201 660 68
