Product Introduction

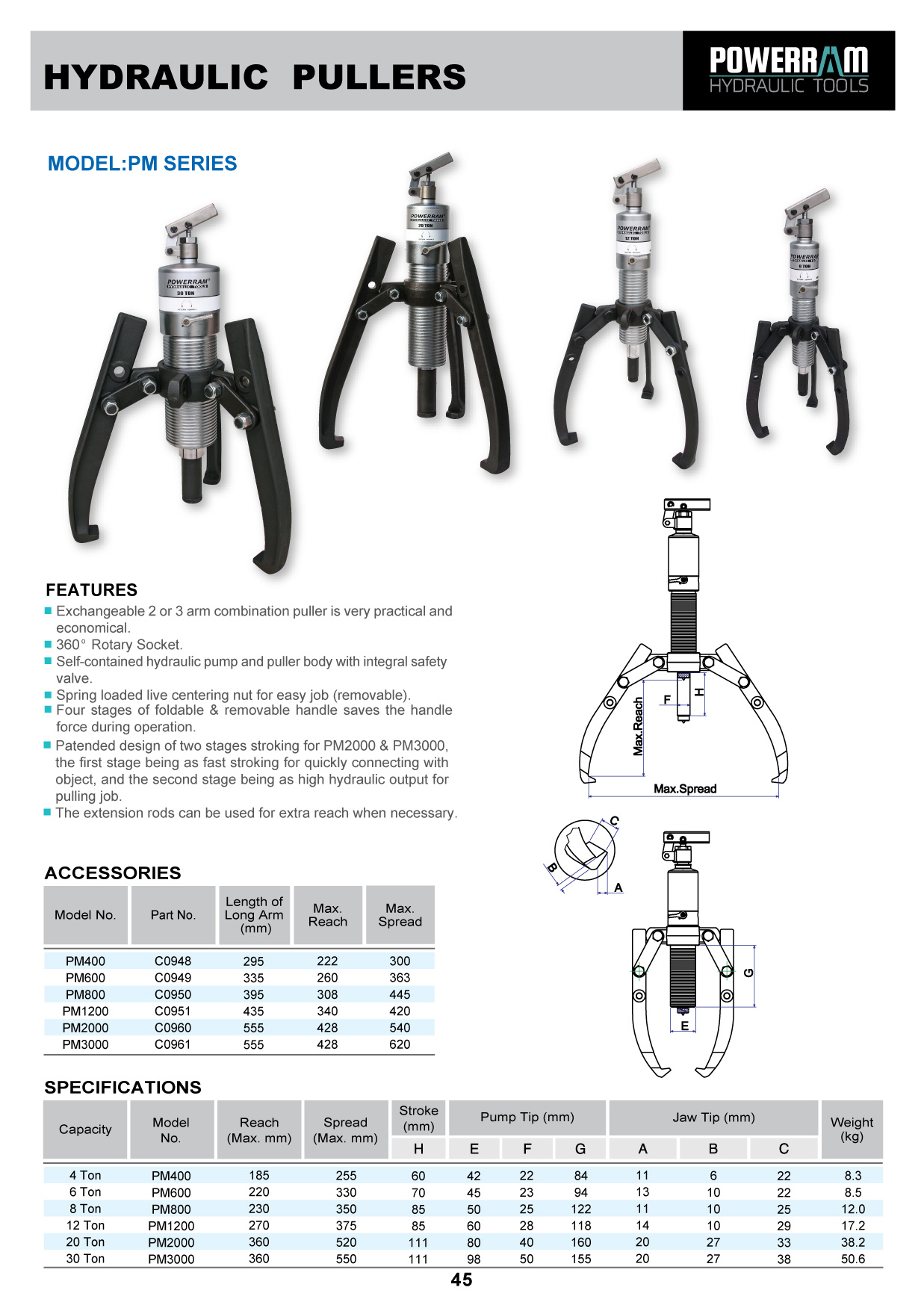

Hydraulic Puller
Product Name : HYDRAULIC PULLER
Product No : PM400-PM3000
Capacity: 4 - 30 Ton
Max. Reach: 185 - 360mm
Max Spread: 255 - 550mm
  • Exchangeable 2 or 3 arm combination puller is very practical and economical.
  • 360o rotary socket.
  • Self-contained hydraulic pump and puller body with integral safety valve.
  • Spring loaded live centering nut for easy job (removable).
  • Four stages of foldable & removable handle saves the handle force during operation.
  • Patended design of two stages stroking for PM2000 & PM3000, the first stage being as fast stroking for quickly connecting with object, and the second stage being as high hydraulic otput for pulling job.
  • The extension rods can be used for extra reach when necessary.
Hydraulic Pullers
CapacityModel No.Reach (Max. mm)Spread (Max. mm)Stroke (mm)Weight (kg)
H
4 Ton PM400 185 255 60 8.3
6 Ton PM600 220 330 70 8.5
8 Ton  PM800 230 350 85 12.0
12 Ton  PM1200 270 375 85 17.2
20 Ton  PM2000 360 520 111 38.2
30 Ton PM3000 360 550 111 50.6
