50 Ton Easy Pullers
- Double acting cylinder for holding, opening and closing the jaws for safe and secure grip on job.
- The easy jaw operating system prevent puller jaws from sliding and/or springing off the work object always.
- Self-centering design keeps the arms slide inwards or outwards simultaneously.
- Electric Pump advances and retracts the pushing cylinder only to prevent operating errors from happening.
- 50 Ton Cylinder is single-acting, spring return type with a maximum working pressure of 10,000 psi.
- Electric Hydraulic pump is two stage version ; the low pressure stage provides the fast stroking to save time ; the high pressure stage is controlled by remote hand switch.
- Puller can be adjusted 5 degree vertically.
- The cart has two swivel castors which can provide the movement of cart easily.
- Four extensions are included for the needs on extra stroke.
- PRE50T is designed as the competitive version for costwise option.
| Model No. | Reach (Max/mm) | Spread (Min-Max) | Stroke (mm) | Power Source (mm) | Weight (kg) | Extension Rod*** | |
|---|---|---|---|---|---|---|---|
| E1876 | E1875 | ||||||

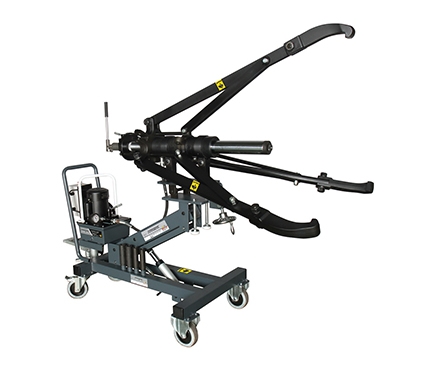

| PME50TE* | 780 | 200 - 1250 | 330 | 220V/50Hz | 400 | 2 | 2 |
| PME50T | 780 | 200 - 1250 | 330 | --- | 372 | 2 | 2 |

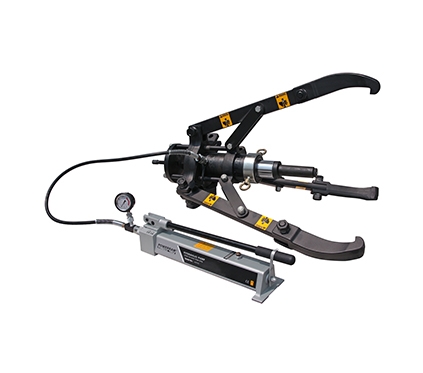

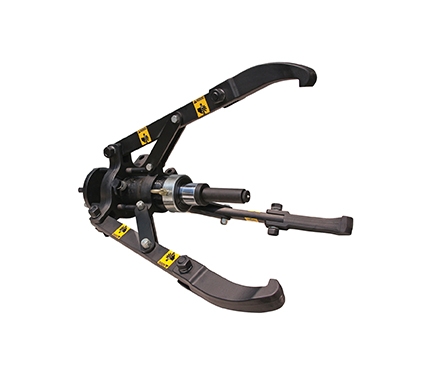

| PRE50T** | 455 | 160 - 860 | 159 | ---- | 140 | 1 | 1 |
| * This model is equipped with the Electric Pump - EP18S. | |||||||
| ** The hand pump is not included in this model, recommend model is AHP703. | |||||||
| *** Quantity of extension rod are included. | |||||||
