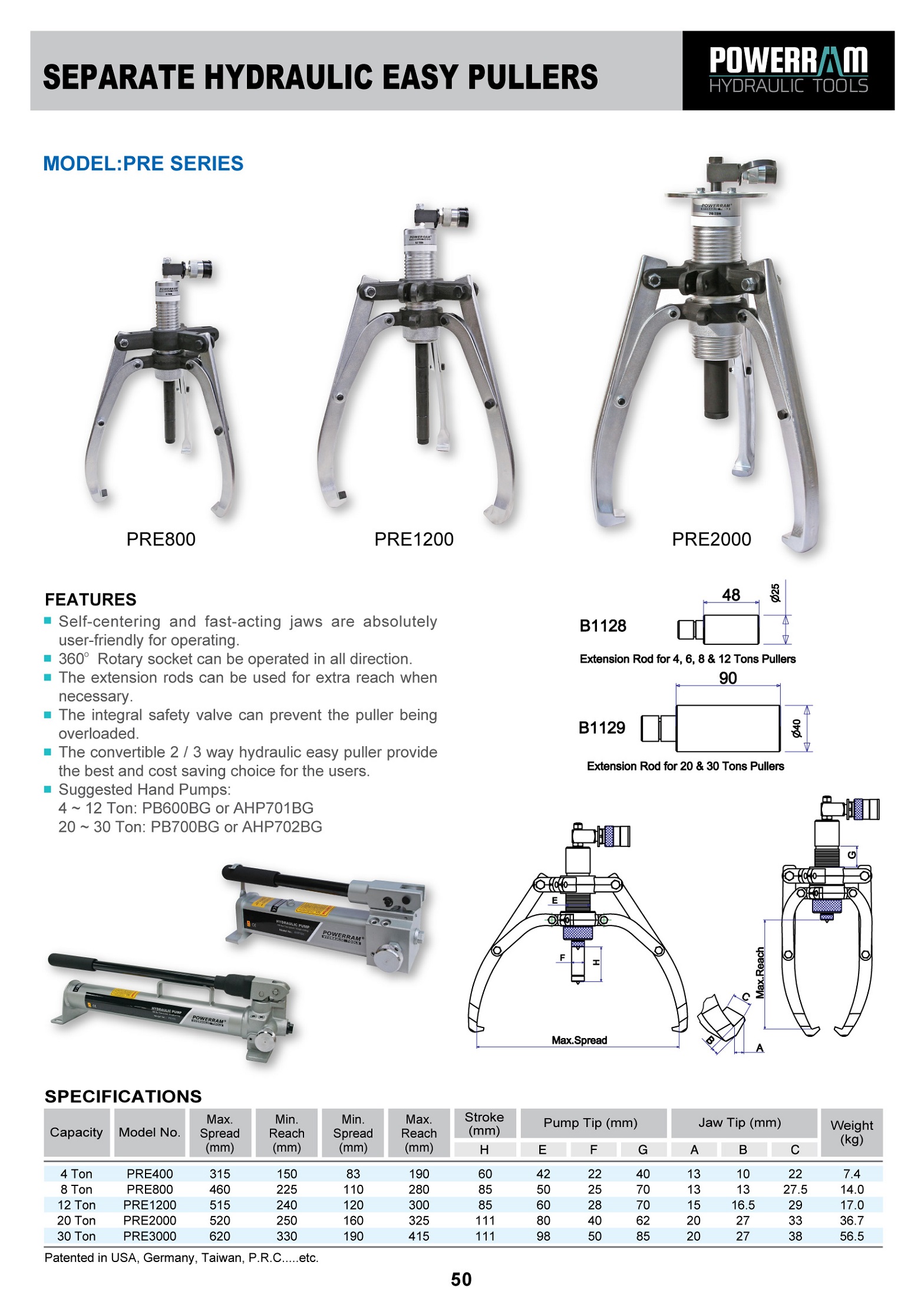

Product Introduction
SEPARATE HYDRAULIC EASY PULLER
Product Name : SEPARATE HYDRAULIC EASY PULLER
Product No : PRE400-PRE3000
Capacity: 4 - 30 Ton
Max. Reach: 190 - 415mm
Max Spread: 315 - 620mm
  • Self-centering and fast-acting jaws are absolutely user-friendly for operating.
  • 360o Rotary socket can be operated in all directin.
  • The extension rods can be used for extra reach when necessary.
  • The integral safety valve can prevent the puller being overloaded.
  • The convertible 2 / 3 way hydraulic easy puller provide the best and cost saving choice for the
    users.
  • Suggested Hand Pumps:
    4-12 Ton: PB600BG or AHP701BG
    20-30 Ton: PB700BG or AHP702BG
Separate Hydraulic Easy Pullers
CapacityModel No.Reach (Max. mm)Spread (Max. mm)Stroke (mm)Weight (kg)
H
4 Ton PRE400 190 315 60 7.4
8 Ton  PRE800 280 460 85 14.0
12 Ton  PRE1200 300 515 85 17.0
20 Ton  PRE2000 325 520 111 36.7
30 Ton PRE3000 415 620 111 56.5
