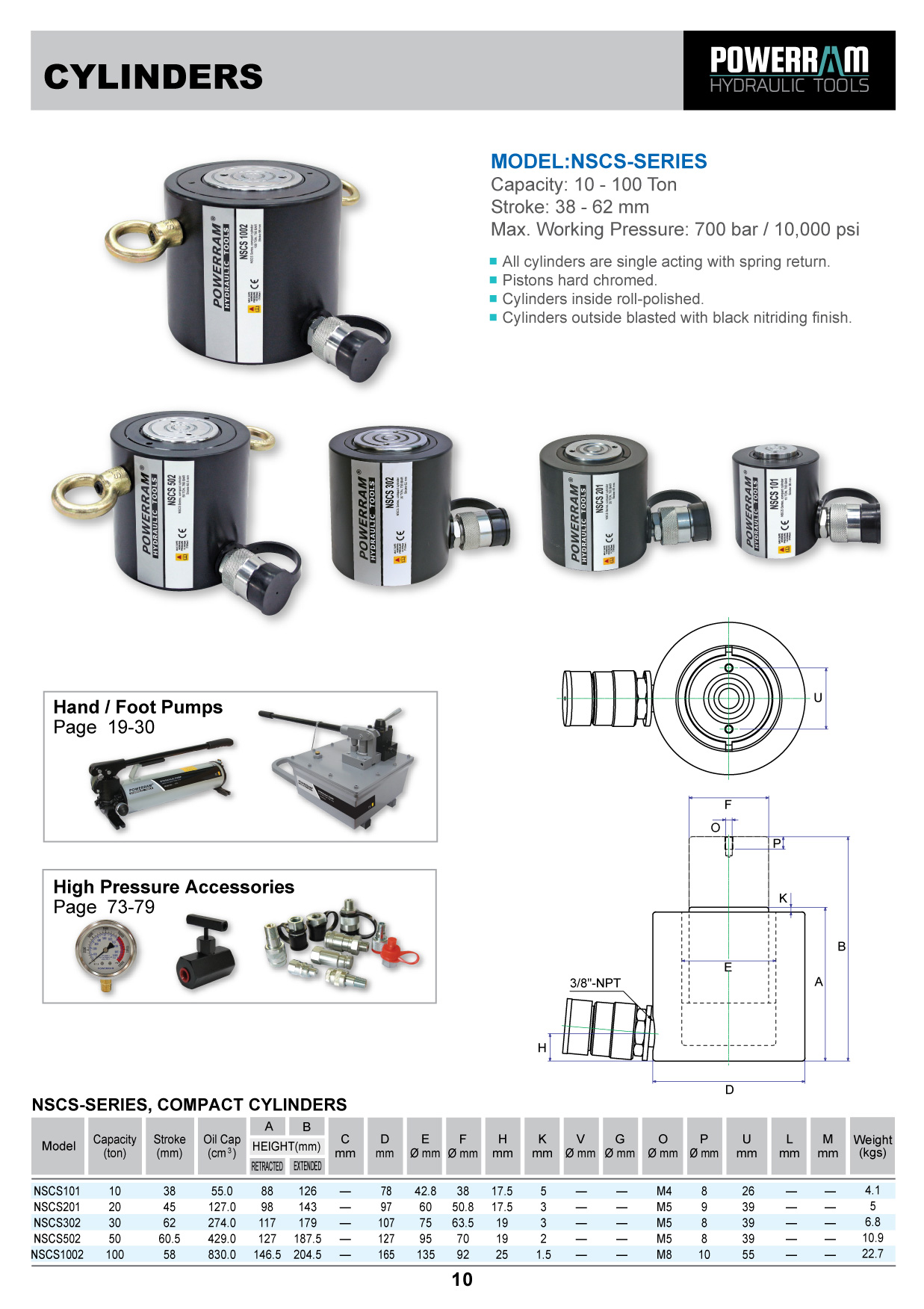

Single Acting / Compact Type
- All cylinders are single acting with spring return.
- Pistons hard chromed.
- Cylinders inside roll-polished.
- Cylinders outside blasted with black nitriding finish.
| NSCS-SERIES, COMPACT CYLINDERS | ||||||
|---|---|---|---|---|---|---|
| Model No. | Capacity (ton) | Storke (mm) | Oil Capacity (cm3) | Height (mm) | WEIGHT (kgs) | |
| Retracted | Extended | |||||
| NSCS101 | 10 | 38 | 55.0 | 88 | 126 | 4.1 |
| NSCS201 | 20 | 45 | 127.0 | 98 | 143 | 5.0 |
| NSCS302 | 30 | 62 | 274.0 | 117 | 179 | 6.8 |
| NSCS502 | 50 | 60.5 | 429.0 | 127 | 187.5 | 10.9 |
| NSCS1002 | 100 | 58 | 830.0 | 146.5 | 204.5 | 22.7 |
