Heavy Duty Hand Pumps
Heavy Duty Hand Pumps
Product Introduction

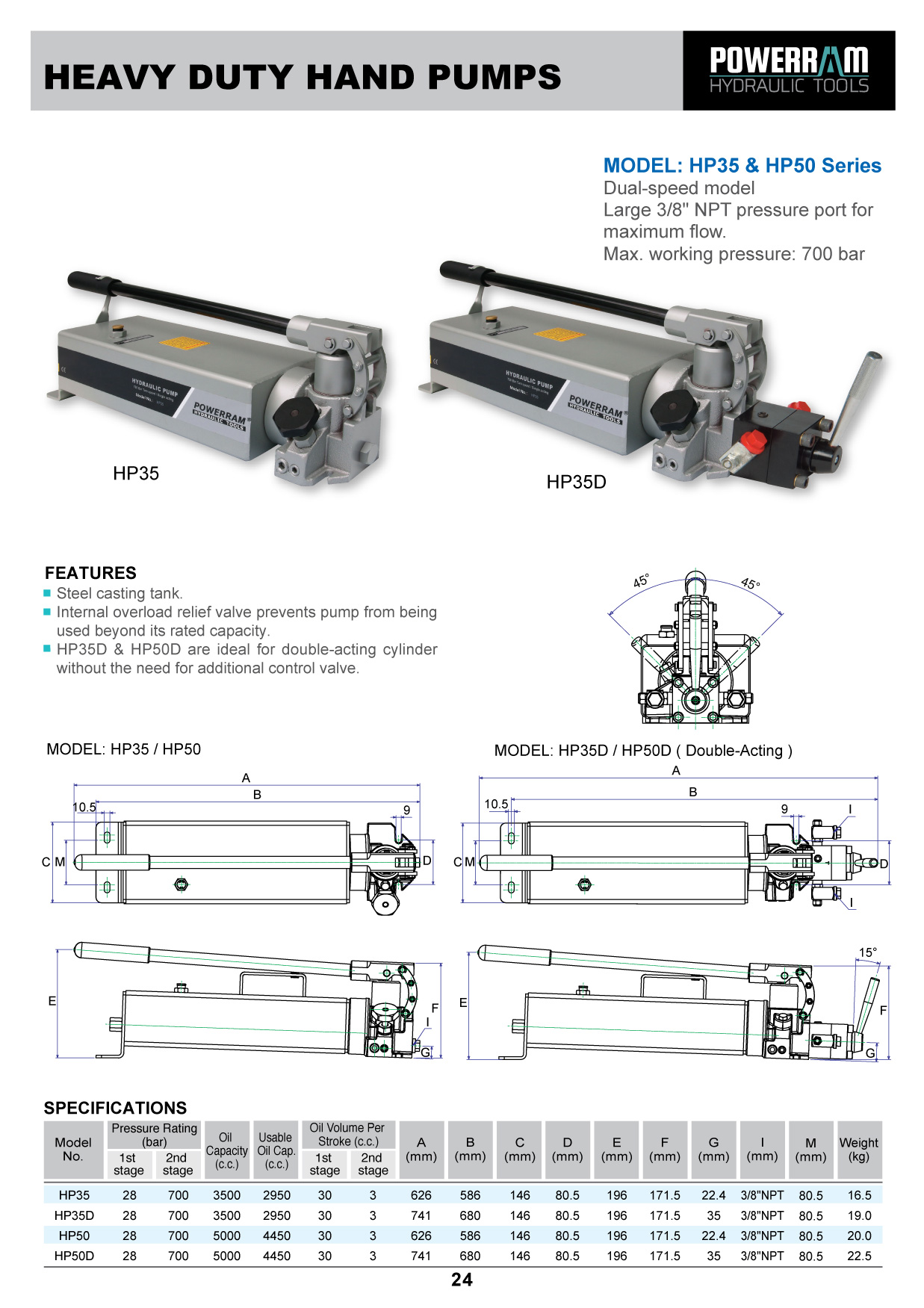

HEAVY DUTY HAND PUMPS
Product Name : Heavy Duty Hand Pumps
Product No : HP35-HP50
MODEL: HP35 & HP50 Series
Dual-speed model
Large 3/8" NPT pressure port for maximum flow.
Max. working pressure: 700 bar
  • Casting tank made of steel.
  • Internal overload relief valve prevents pump from being used beyond its rated capacity.
  • HP35 & HP35D are ideal for double-acting cylinders without the need for additional control valve.
Model No.Pressure Rating (bar)Oil Capacity (c.c.)Oil Volume per Stroke (c.c.)Weight (kgs)
1st Stage 2nd stage 1st Stage 2nd stage
HP35 28 700 3500 30 3 16.5
HP35D 28 700 3500 30 3 19.0
HP50 28 700 5000 30 3 20.0
HP50D 28 700 5000 30 3 22.5
